SWDY1008-R60MF-NC HIGH CURRENT POWER INDUCTORS

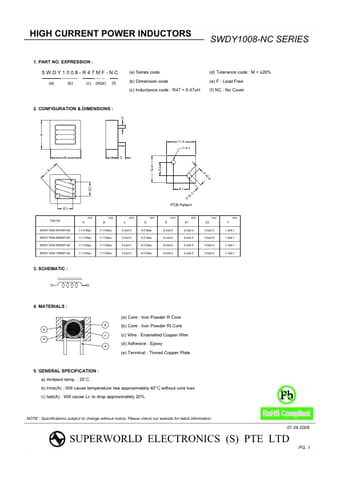

www.DataSheet.co.kr HIGH CURRENT POWER INDUCTORS 1. PART NO. EXPRESSION : SWDY1008-NC SERIES SWDY1008-R47MF-NC (a) (b) (c) (d)(e) (f) (a) Series code (b) Dimension code (c) Inductance code : R47 = 0.47uH (d) Tolerance code : M = ±20% (e) F : Lead Free (f) NC : No Cover 2. CONFIGURATION & DIMENSIONS : F A 11.5 F+0.3 B D C 12.0 E2 E 0 F+ .6 E2 E1 F+ 0 .3 E1 mm A 11.0 Max. 11.0 Max. 11.0 Max. 11.0 Max. B 11.5 Max. 11.5 Max. 11.5 Max. 11.5 Max. mm C 3.5±0.5 3.5±0.5 3.5±0.5 3.5±0.5 mm .

SWDY1008-NC_Superworld.pdf

This datasheet PDF includes multiple part numbers: SWDY1008-R60MF-NC, SWDY1008-NC. Please refer to the document for exact specifications by model.
SWDY1008-R60MF-NC Datasheet Preview Page 2 SWDY1008-R60MF-NC Datasheet Preview Page 3

Datasheet Details

Part number:

SWDY1008-R60MF-NC, SWDY1008-NC

Manufacturer:

Superworld

File Size:

203.10 KB

Description:

High current power inductors.

Note:

This datasheet PDF includes multiple part numbers: SWDY1008-R60MF-NC, SWDY1008-NC.
Please refer to the document for exact specifications by model.
