FQB020ADC-007-M EMC Filters

MIL-COTS 20A, 40Vdc Active EMC Filters FQB Series www.us.tdk-lambda.com/lp/products/fqb-series www.emea.tdk-lambda.com/fqb The FQB ﬁlter modules have been designed to reduce differential and common mode conducted emissions from dc-dc switching converters. In addition, the series contains active suppression circuitry to block input voltage surges and transients. The FQB takes advantage of TDK technologies to simplify system level compliance to MIL-STD-461, MIL-STD-1275, RTCA/DO-160 and MIL-STD-.

FQB020ADC-007-M Features

* Filtering for Compliance to MIL-STD-461(F,G)

* Input Spike and Surge Suppression per MIL-STD-1275(D,E), MIL-STD-704(A-F) and RTCA/DO-160G (Sec 16-18)

* High Differential and Common Mode Noise Attenuation

* -55 to 115°C Temperature Range (M-Grade)

* Standard

FQB020ADC-007-S-TDK-Lambda.pdf

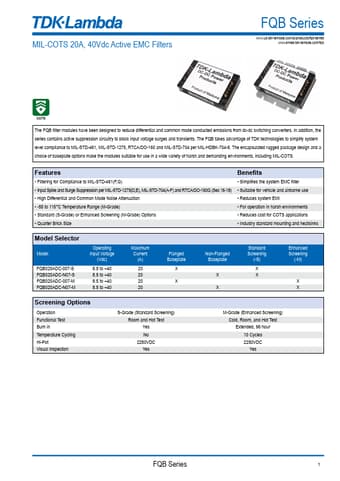

FQB020ADC-007-M Datasheet Preview — This datasheet PDF includes multiple part numbers: FQB020ADC-007-M, FQB020ADC-007-S-TDK. Please refer to the document for exact specifications by model.

FQB020ADC-007-M Datasheet Preview Page 2

FQB020ADC-007-M Datasheet Preview Page 3

Datasheet Details

Part number:

FQB020ADC-007-M, FQB020ADC-007-S-TDK

Manufacturer:

TDK-Lambda

File Size:

1.04 MB

Description:

Emc filters.

Note:

This datasheet PDF includes multiple part numbers: FQB020ADC-007-M, FQB020ADC-007-S-TDK.
Please refer to the document for exact specifications by model.
