FQB10N20L Datasheet - Fairchild Semiconductor

FQB10N20L 200V LOGIC N-Channel MOSFET

These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar stripe, DMOS technology. This advanced technology is especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the .

FQB10N20L Features

* 10A, 200V, RDS(on) = 0.36Ω @VGS = 10 V Low gate charge ( typical 13 nC) Low Crss ( typical 14 pF) Fast switching 100% avalanche tested Improved dv/dt capability Low level gate drive requirement allowing direct operation from logic

FQB10N20L_FairchildSemiconductor.pdf

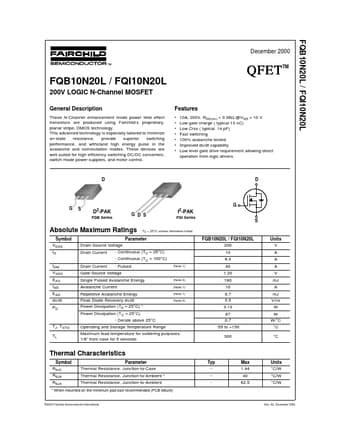

Preview of FQB10N20L PDF
FQB10N20L Datasheet Preview Page 2 FQB10N20L Datasheet Preview Page 3

Datasheet Details

Part number:

FQB10N20L

Manufacturer:

Fairchild Semiconductor

File Size:

574.05 KB

Description:

200v logic n-channel mosfet.
