FQB11N40 Datasheet - Fairchild Semiconductor

FQB11N40 400V N-Channel MOSFET

These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar stripe, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse i.

FQB11N40 Features

* 11.4A, 400V, RDS(on) = 0.48Ω @VGS = 10 V Low gate charge ( typical 27 nC) Low Crss ( typical 20 pF) Fast switching 100% avalanche tested Improved dv/dt capability D D ! " G! G S ! " " " D2-PAK FQB Series G D S I2-PAK FQI Series ! S

FQB11N40_FairchildSemiconductor.pdf

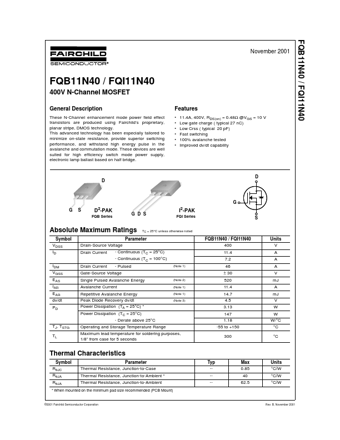

Preview of FQB11N40 PDF
FQB11N40 Datasheet Preview Page 2 FQB11N40 Datasheet Preview Page 3

Datasheet Details

Part number:

FQB11N40

Manufacturer:

Fairchild Semiconductor

File Size:

566.93 KB

Description:

400v n-channel mosfet.
