FQB020ADC-007-S, FQB020ADC-007-S-TDK - EMC Filters

FQB020ADC-007-S Description

MIL-COTS 20A, 40Vdc Active EMC Filters FQB Series www.us.tdk-lambda.com/lp/products/fqb-series www.emea.tdk-lambda.com/fqb The FQB filter modules hav.

FQB020ADC-007-S Features

* Filtering for Compliance to MIL-STD-461(F,G)
* Input Spike and Surge Suppression per MIL-STD-1275(D,E), MIL-STD-704(A-F) and RTCA/DO-160G (Sec 16-18)
* High Differential and Common Mode Noise Attenuation
* -55 to 115°C Temperature Range (M-Grade)
* Standard

FQB020ADC-007-S Applications

* Industry standard mounting and heatsinks Model Selector Model FQB020ADC-007-S FQB020ADC-N07-S FQB020ADC-007-M FQB020ADC-N07-M Operating Input Voltage (Vdc) 8.5 to +40 8.5 to +40 8.5 to +40 8.5 to +40 Maximum Current (A) 20 20 20 20 Flanged Baseplate X X Screening Options Operation Fun

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FQB020ADC-007-S, FQB020ADC-007-S-TDK. Please refer to the document for exact specifications by model.

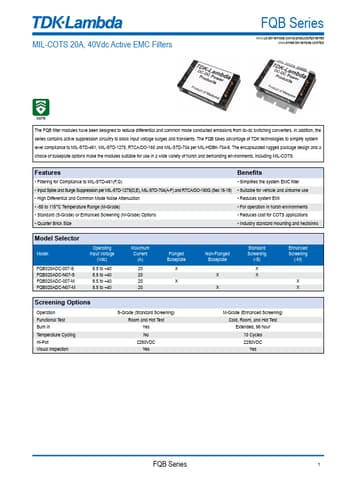

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FQB020ADC-007-S, FQB020ADC-007-S-TDK
Manufacturer
TDK-Lambda
File Size
1.04 MB
Datasheet
FQB020ADC-007-S-TDK-Lambda.pdf
Description
EMC Filters
Note
This datasheet PDF includes multiple part numbers: FQB020ADC-007-S, FQB020ADC-007-S-TDK.
Please refer to the document for exact specifications by model.
