FQB22P10TM-F085 - P-Channel MOSFET

Datasheet Summary

Description

These P-Channel enhancement mode power field effect transistors are produced using ON Semiconductor proprietary, planar stripe, DMOS technology.

Features

  • -22A, -100V, RDS(on) = 0.125Ω @VGS = -10 V.
  • Low gate charge ( typical 40 nC).
  • Low Crss ( typical 160 pF).
  • Fast switching.
  • 100% avalanche tested.
  • Improved dv/dt capability.
  • 175°C maximum junction temperature rating.
  • Qualified to AEC Q101.
  • RoHS Compliant D D G S D2-PAK FQB Series Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter VDSS ID IDM VGSS EAS IAR EAR dv/dt PD TJ, TSTG TL Drain-S.

📥 Download Datasheet

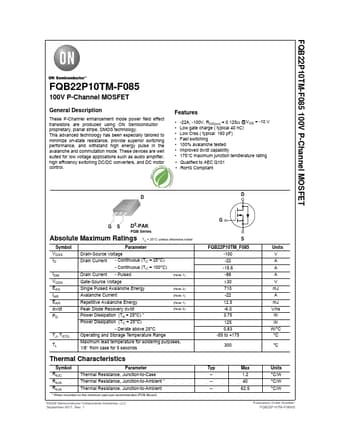

Datasheet preview – FQB22P10TM-F085
