FQB34N20 Datasheet PDF - ON Semiconductor N-Channel MOSFET Specs

FQB34N20 - N-Channel MOSFET

Datasheet Summary

Description

This N-Channel enhancement mode power MOSFET is produced using ON Semiconductor’s proprietary planar stripe and DMOS technology.

Features

31 A, 200 V, RDS(on) = 75 mΩ (Max. ) @ VGS = 10 V, ID = 15.5 A.
Low Gate Charge (Typ. 60 nC).
Low Crss (Typ. 55 pF).
100% Avalanche Tested.
RoHS Compliant D D G S D2-PAK G S + 6 6 + ; 6 ; !$ 8 + 2-)/74 2-(.
74 8 : +.

Datasheet Details

Part number	FQB34N20
Manufacturer	ON Semiconductor
File Size	899.76 KB
Description	N-Channel MOSFET
Datasheet	FQB34N20 Datasheet

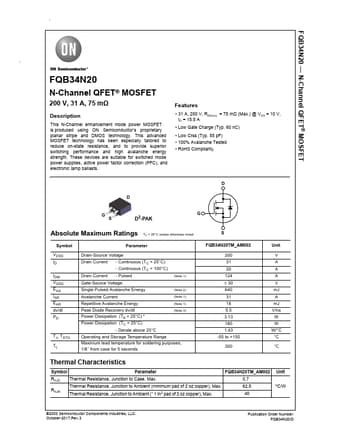

Additional preview pages of the FQB34N20 datasheet.
