FQB34P10TM_F085 Datasheet, Mosfet, Fairchild Semiconductor

FQB34P10TM_F085 Features

  • Mosfet
  • -33.5A, -100V, RDS(on) = 0.06Ω @VGS = -10 V
  • Low gate charge ( typical 85 nC)
  • Low Crss ( typical 170 pF)
  • Fast switching
  • 100% avalanche t

PDF File Details

Part number:

FQB34P10TM_F085

Manufacturer:

Fairchild Semiconductor

File Size:

1.12MB

Download:

📄 Datasheet

Description:

100v p-channel mosfet. These P-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar stripe, DMOS techn

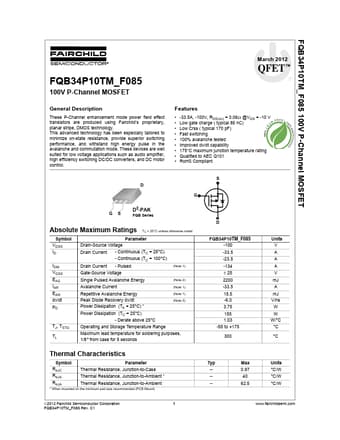

Datasheet Preview: FQB34P10TM_F085 📥 Download PDF (1.12MB)
Page 2 of FQB34P10TM_F085 Page 3 of FQB34P10TM_F085

FQB34P10TM_F085 Application

  • Applications such as audio amplifier, high efficiency switching DC/DC converters, and DC motor control. Features
  • -33.5A, -100V, RDS(on) =
