FQB30N06L, 60V LOGIC N-Channel MOSFET

FQB30N06L / FQI30N06L May 2001 QFET FQB30N06L / FQI30N06L 60V LOGIC N-Channel MOSFET General .
These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar stripe, DMOS technology.

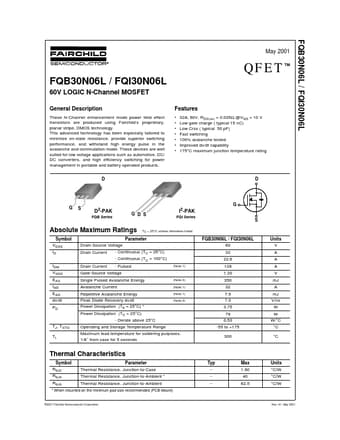

datasheet Preview Page 1 from Datasheet4u.com

FQB30N06L_FairchildSemiconductor.pdf

FQB30N06L Datasheet Preview — Preview of FQB30N06L PDF

Datasheet Details

Part number:

FQB30N06L

Manufacturer:

Fairchild Semiconductor

File Size:

630.89 KB

Description:

60V LOGIC N-Channel MOSFET

Features

* 32A, 60V, RDS(on) = 0.035Ω @VGS = 10 V Low gate charge ( typical 15 nC) Low Crss ( typical 50 pF) Fast switching 100% avalanche tested Improved dv/dt capability 175°C maximum junction temperature rating D ! " G S G! ! " " "
