FQB22P10TM_F085, 100V P-Channel MOSFET

FQB22P10TM_F085 100V P-Channel MOSFET February 2009 QFET ® FQB22P10TM_F085 100V P-Channel MOSFET General .
These P-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar stripe, DMOS technology.

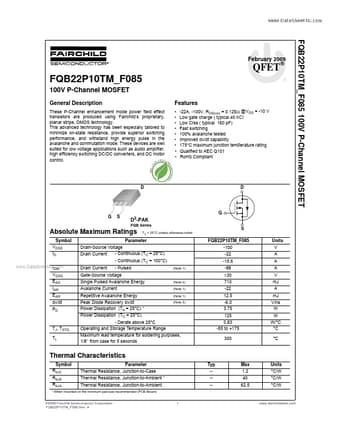

datasheet Preview Page 1 from Datasheet4u.com

FQB22P10TM_F085_FairchildSemiconductor.pdf

FQB22P10TM_F085 Datasheet Preview — Preview of FQB22P10TM_F085 PDF

Datasheet Details

Part number:

FQB22P10TM_F085

Manufacturer:

Fairchild Semiconductor

File Size:

693.77 KB

Description:

100V P-Channel MOSFET

Features

* -22A, -100V, RDS(on) = 0.125Ω @VGS = -10 V Low gate charge ( typical 40 nC) Low Crss ( typical 160 pF) Fast switching 100% avalanche tested Improved dv/dt capability 175°C maximum junction temperature rating Qu
