FQB24N08, 80V N-Channel MOSFET

FQB24N08 / FQI24N08 August 2000 QFET FQB24N08 / FQI24N08 80V N-Channel MOSFET General .
These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar stripe, DMOS technology.

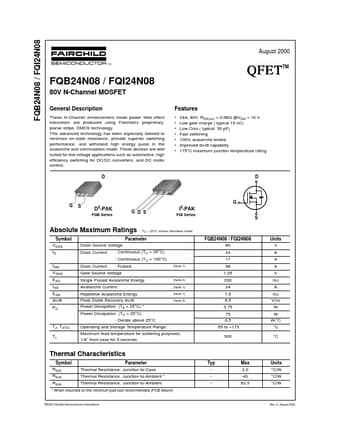

datasheet Preview Page 1 from Datasheet4u.com

FQB24N08_FairchildSemiconductor.pdf

FQB24N08 Datasheet Preview — Preview of FQB24N08 PDF

Datasheet Details

Part number:

FQB24N08

Manufacturer:

Fairchild Semiconductor

File Size:

719.74 KB

Description:

80V N-Channel MOSFET

Features

* 24A, 80V, RDS(on) = 0.06Ω @VGS = 10 V Low gate charge ( typical 19 nC) Low Crss ( typical 50 pF) Fast switching 100% avalanche tested Improved dv/dt capability 175°C maximum junction temperature rating D ! " G S G! ! " " " D
