FQB20N06L Datasheet, Mosfet, Fairchild Semiconductor

FQB20N06L Features

  • Mosfet
  • 21A, 60V, RDS(on) = 0.055Ω @VGS = 10 V Low gate charge ( typical 9.5 nC) Low Crss ( typical 35 pF) Fast switching 1

PDF File Details

Part number:

FQB20N06L

Manufacturer:

Fairchild Semiconductor

File Size:

680.45kb

Download:

📄 Datasheet

Description:

60v logic n-channel mosfet. These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar stripe, DMOS techn

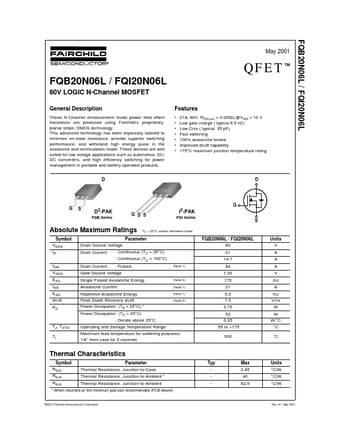

Datasheet Preview: FQB20N06L 📥 Download PDF (680.45kb)
Page 2 of FQB20N06L Page 3 of FQB20N06L

FQB20N06L Application

  • Applications such as automotive, DC/ DC converters, and high efficiency switching for power management in portable and battery operated products. D
