THC63LVD823B

160MHz 51Bits LVDS Transmitter

THine Electronics

THC63LVD823B Features

* Wide dot clock range suited for TV Signal (480p- 1080p), PC Signal (VGA-QXGA) TTL/CMOS Input: 10-160MHz LVDS Output: 20-160MHz

* PLL requires No external components

* Flexible Input/Output mode 1. Single/Dual TTL IN, Single/Dual LVDS OUT 2. Double edge input for Single TTL

THC63LVD823B General Description

The THC63LVD823B transmitter is designed to support Single Link transmission between Host and Flat Panel Display and Dual Link transmission between Host and Flat Panel Display up to 1080p/QXGA resolutions. The THC63LVD823B converts 51bits of CMOS/TTL data into LVDS (Low Voltage Differential Signalin.

THC63LVD823B Datasheet (159.93 KB)

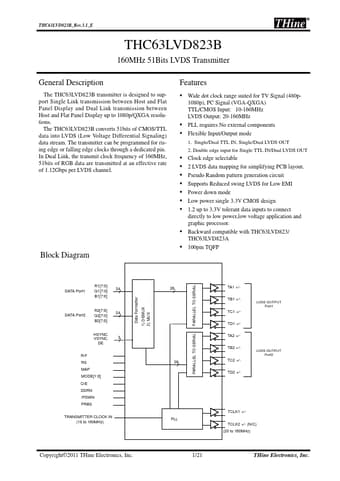

THC63LVD823B Datasheet Preview — Preview of THC63LVD823B PDF

Datasheet Details

Part number:

THC63LVD823B

Manufacturer:

THine Electronics

File Size:

159.93 KB

Description:

160mhz 51bits lvds transmitter.
