THC63LVD1027

Dual Link LVDS Repeater

THC63LVD1027 Features

* 30bits/pixel dual link LVDS Receiver

* 30bits/pixel dual Link LVDS Transmitter

* Operating Temperature Range : -40ºC~85ºC

* Wide LVDS input skew margin: ± 480ps at 75MHz

* Accurate LVDS output timing: ± 250ps at 75MHz

* Reduced swing LVDS output mode

THC63LVD1027 General Description

The THC63LVD1027 LVDS(Low Voltage Differential Signaling) repeater is designed to support pixel data transmission between Host and Flat Panel Display up to WUXGA resolution. THC63LVD1027 receives the dual link LVDS data streams and transmits the LVDS data through various line rate conversion modes, .

THC63LVD1027 Datasheet (1.02 MB)

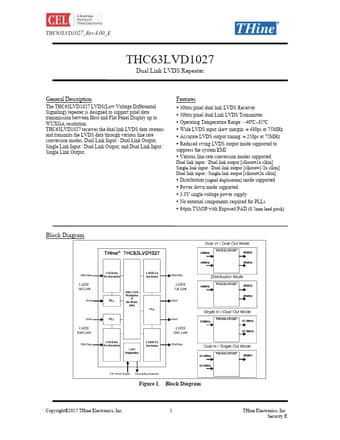

Preview of THC63LVD1027 PDF

Datasheet Details

Part number:

THC63LVD1027

Manufacturer:

CEL

File Size:

1.02 MB

Description:

Dual link lvds repeater.
