THC63LVD103

135MHz 30Bits COLOR LVDS Transmitter

THine Electronics

THC63LVD103 Features

* Wide dot clock range: 8-135MHz suited for NTSC, VGA, SVGA, XGA,SXGA and SXGA+

* PLL requires no external components Supports spread spectrum clock generator On chip jitter filtering Clock edge selecta

THC63LVD103 General Description

The THC63LVD103 transmitter is designed to support pixel data transmission between Host and Flat Panel Display from NTSC up to SXGA+ resolutions. The THC63LVD103 converts 35bits of CMOS/TTL data into LVDS(Low Voltage Differential Signaling) data stream. The transmitter can be programmed for rising e.

THC63LVD103 Datasheet (315.58 KB)

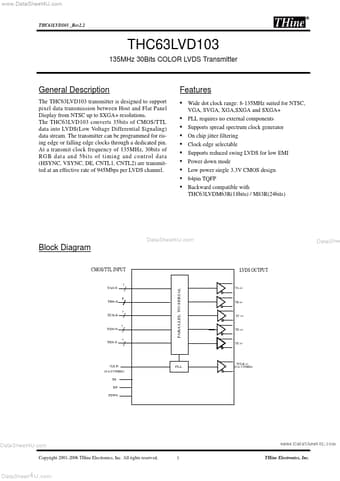

THC63LVD103 Datasheet Preview — Preview of THC63LVD103 PDF

Datasheet Details

Part number:

THC63LVD103

Manufacturer:

THine Electronics

File Size:

315.58 KB

Description:

135mhz 30bits color lvds transmitter.
