THC63LVD104A Datasheet - THine Electronics

90MHz 30Bits COLOR LVDS Receiver

THC63LVD104A Features

* Wide dot clock range: 8-90MHz suited for NTSC, VGA, SVGA, XGA, and WXGA

* PLL requires no external components

* 50% output clock duty cycle

* TTL clock edge programmable

* Power down mode

* Low power single 3.3V CMOS design

* 64pin TQFP

THC63LVD104A General Description

The THC63LVD104A receiver is designed to support pixel data transmission between Host and Flat Panel Display from NTSC up to WXGA resolutions. The THC63LVD104A converts the LVDS data streams back into 35bits of CMOS/TTL data with rising edge or falling edge clock for convenient with a variety of LCD.

THC63LVD104A Datasheet (85.43 KB)

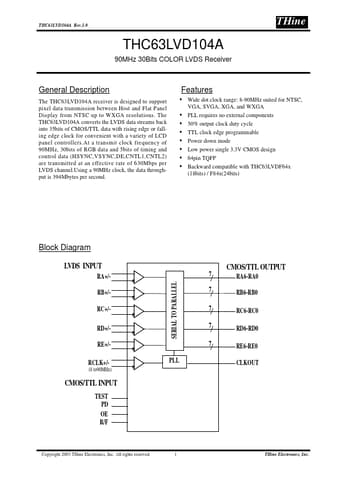

Preview of THC63LVD104A PDF

Datasheet Details

Part number:

THC63LVD104A

Manufacturer:

THine Electronics

File Size:

85.43 KB

Description:

90mhz 30bits color lvds receiver.
