THC63LVD104C

112MHz 30Bits COLOR LVDS Receiver

THC63LVD104C Features

* Wide dot clock range: 8-112MHz suited for NTSC, VGA, SVGA, XGA, and SXGA

* PLL requires no external components

* 50% output clock duty cycle

* TTL clock edge programmable

* Power down mode

* Low power single 3.3V CMOS design

* 64pin TQFP

THC63LVD104C General Description

The THC63LVD104C receiver is designed to support pixel data transmission between Host and Flat Panel Display from NTSC up to SXGA resolutions. The THC63LVD104C converts the LVDS data streams back into 35bits of CMOS/TTL data with the choice of the rising edge or falling edge clock for the convenienc.

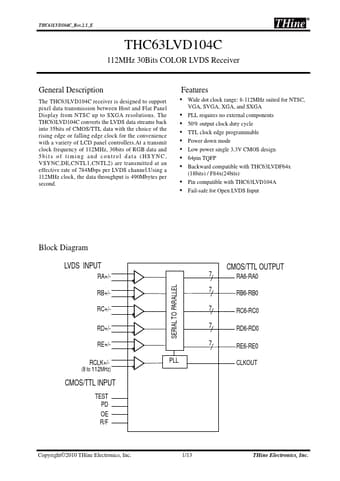

THC63LVD104C Datasheet (116.19 KB)

Preview of THC63LVD104C PDF

Datasheet Details

Part number:

THC63LVD104C

Manufacturer:

THine Electronics

File Size:

116.19 KB

Description:

112mhz 30bits color lvds receiver.
