THC63LVD103D

160MHz 30bit COLOR LVDS TRANSMITTER

THC63LVD103D Features

* ･Compatible with TIA/EIA-644 LVDS Standard ･7:1 LVDS Transmitter ･Operating Temperature Range : 0 to +70C ･No Special Start-up Sequence Required ･Spread Spectrum Clocking Tolerant up to 1

THC63LVD103D General Description

The THC63LVD103D transmitter is designed to support pixel data transmission between Host and Flat Panel Display from NTSC up to 1080p(60Hz) . The THC63LVD103D converts 35bits of CMOS/TTL data into four LVDS data streams. The transmitter can be programmed for rising edge or falling edge clock through.

THC63LVD103D Datasheet (606.09 KB)

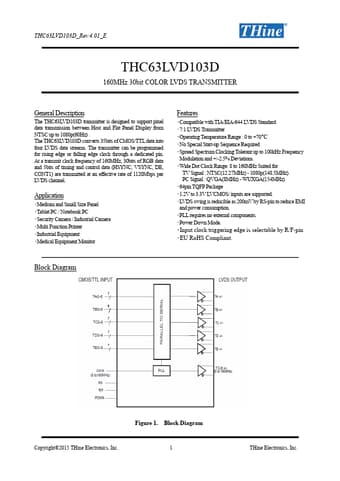

Preview of THC63LVD103D PDF

Datasheet Details

Part number:

THC63LVD103D

Manufacturer:

THine Electronics

File Size:

606.09 KB

Description:

160mhz 30bit color lvds transmitter.
