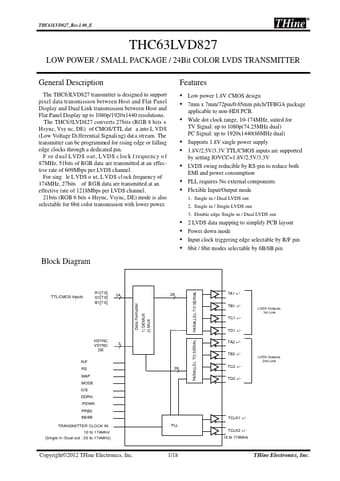

THC63LVD827 Datasheet - THine

THC63LVD827 Low Power / Small Package / 24Bit Color LVDS Transmitter

The THC63LVD827 transmitter is designed to support pixel data transmission between Host and Flat Panel Display and Dual Link transmission between Host and Flat Panel Display up to 1080p/1920x1440 resolutions. The THC63LVD827 converts 27bits (RGB 8 bits + Hsync, Vsy nc, DE) of CMOS/TTL dat a into L V.

THC63LVD827 Features

* Low power 1.8V CMOS design

* 7mm x 7mm/72pin/0.65mm pitch/TFBGA package

* applicable to non-HDI PCB. Wide dot clock range, 10-174MHz, suited for TV Signal: up to 1080p(74.25MHz dual) PC Signal: up to 1920x1440(86MHz dual) Supports 1.8V single power supply
