TMI3108 - 1.5MHz 1A Synchronous Step-DownConverter

Name: TMI3108
SKU: TMI3108-1594626

TOLL

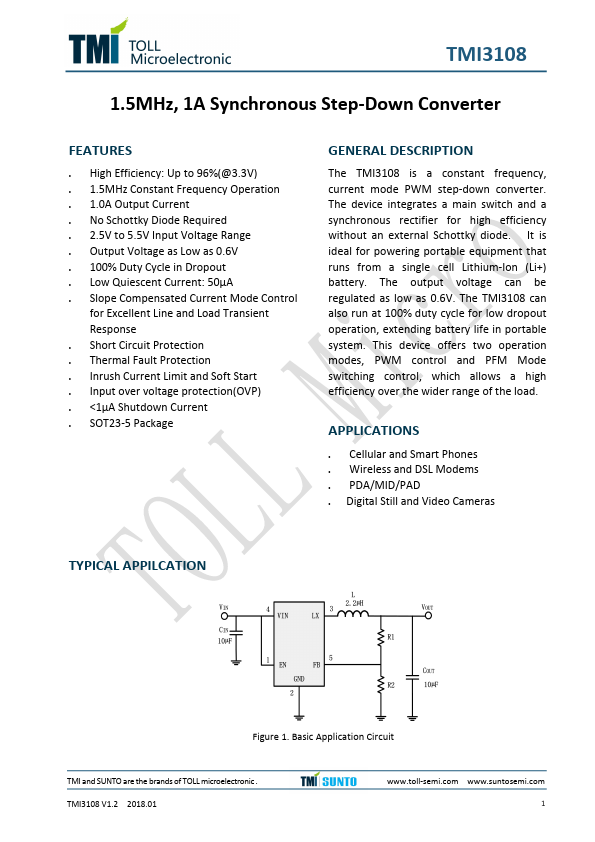

The TMI3108 by TOLL is a 1.5MHz 1A Synchronous Step-DownConverter. Below is the official datasheet preview.

Datasheet Details

Part number	TMI3108
Manufacturer	TOLL
File Size	502.75 KB
Description	1.5MHz 1A Synchronous Step-DownConverter
Datasheet	TMI3108-TOLL.pdf

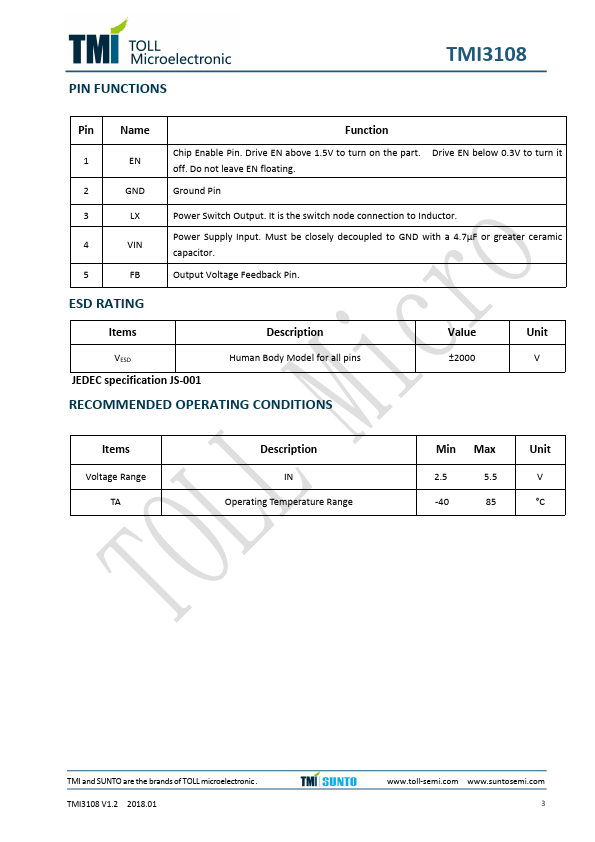

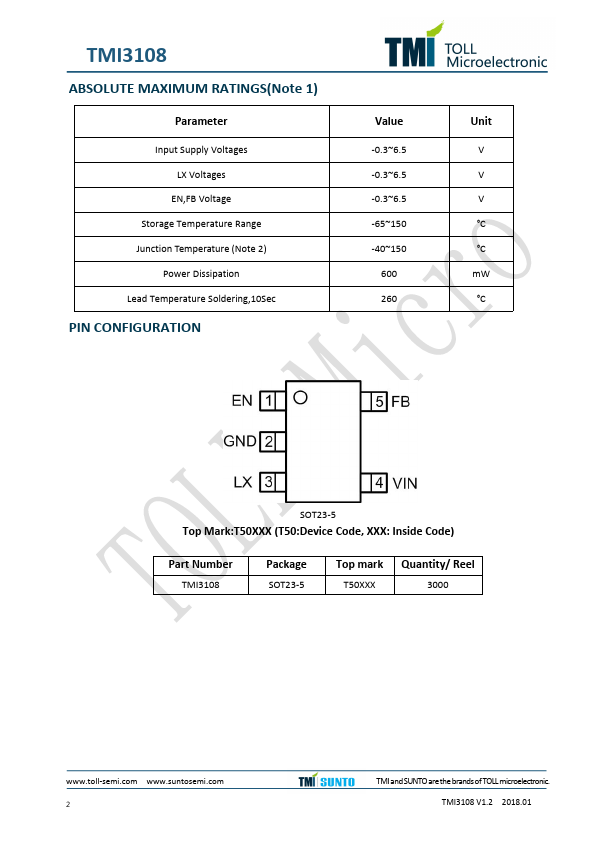

Additional preview pages of the TMI3108 datasheet.

The TMI3108 is a constant frequency, current mode PWM step-down converter.

High Efficiency: Up to 96%(@3.3V).
1.5MHz Constant Frequency Operation.
1.0A Output Current.
No Schottky Diode Required.
2.5V to 5.5V Input Voltage Range.
Output Voltage as Low as 0.6V.
100% Duty Cycle in Dropout.
Low Quiescent Current: 50µA.
Slope Compensated Current Mode Control for Excellent Line and Load Transient Response.
Short Circuit Protection.
Thermal Fault Protection.
Inrush Current Limit and Soft Start.
Input over volt.
