TSRN1-2433SM, TSRN1-0525SM, Non-Isolated DC/DC Converter

Non-Isolated DC/DC Converter (POL) TSRN 1SM Series, 1 A * Compact SMD package * Suitable for positive & negative output circuit

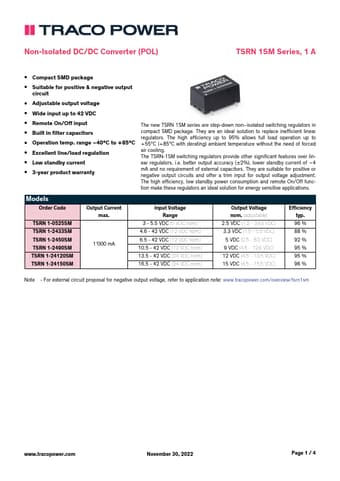

datasheet Preview Page 1 from Datasheet4u.com

TSRN1-0525SM-TRACOPOWER.PDF

TSRN1-2433SM Datasheet Preview — This datasheet PDF includes multiple part numbers: TSRN1-2433SM, TSRN1-0525SM. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TSRN1-2433SM, TSRN1-0525SM

Manufacturer:

TRACO POWER

File Size:

833.03 KB

Description:

Non-Isolated DC/DC Converter

Note:

This datasheet PDF includes multiple part numbers: TSRN1-2433SM, TSRN1-0525SM.
Please refer to the document for exact specifications by model.

Features

* over linear regulators, i. e. better output accuracy (±2%), lower standby current of ~4
* 3-year product warranty mA and no requirement of external capacitors. They are suitable for positive or negative output circuits and offer a trim input for output voltage adjustment. The high efficien

Applications

* Models Order Code TSRN 1-0525SM TSRN 1-2433SM TSRN 1-2450SM TSRN 1-2490SM TSRN 1-24120SM TSRN 1-24150SM Output Current max. 1'000 mA Input Voltage Range 3 - 5.5 VDC (5 VDC nom. ) 4.6 - 42 VDC (12 VDC nom. ) 6.5 - 42 VDC (12 VDC nom. ) 10.5 - 42 VDC (12 VDC nom. ) 13.5 - 42 VDC (24 VDC nom. ) 16.5 - 4
