TSM20N50CN

500V N-Channel Power MOSFET

TSM20N50CN Features

* Low RDS(ON) 0.3Ω (Max.) Low gate charge typical @ 54nC (Typ.) Improve dv/dt capability Block Diagram Ordering Information Part No. TSM20N50CN C0 Package TO-3PN Packing 30pcs / Tube N-Channel MOSFET Absolute Maximum Rating (Ta = 25oC unless otherwise noted) Parameter Drain-Sou

TSM20N50CN General Description

The TSM20N50CN N-Channel enhancement mode Power MOSFET is produced by planar stripe DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. T.

TSM20N50CN Datasheet (499.21 KB)

Preview of TSM20N50CN PDF

Datasheet Details

Part number:

TSM20N50CN

Manufacturer:

Taiwan Semiconductor

File Size:

499.21 KB

Description:

500v n-channel power mosfet.

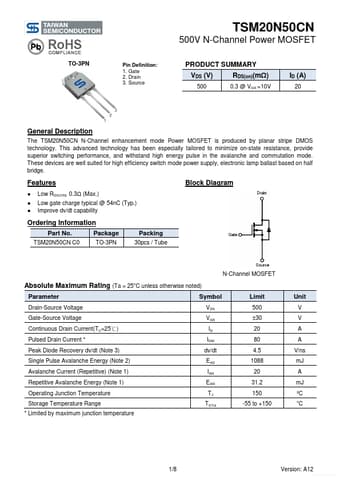

TSM20N50CN 500V N-Channel Power MOSFET TO-3PN Pin Definition: 1. Gate 2. Drain 3. Source PRODUCT SUMMARY VDS (V) 500 RDS(on)(mΩ) 0.3 @ VGS =10V ID .
