TSM850N06CX Datasheet - Taiwan Semiconductor

TSM850N06CX - N-Channel Power MOSFET

only.

No license, express or implied, to any intellectual property rights is granted by this document.

Except as provided in TSC’s terms and conditions of sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty, relating to sale and/or use of TSC pr

TSM850N06CX 60V N-Channel Power MOSFET SOT-23 Pin Definition: 1.

Gate 2.

Source 3.

Drain Key Parameter Performance Parameter Value VDS RDS(on) (max) VGS = 10V VGS = 4.5V 60 85 100 Qg 9.3 Unit V mΩ nC Ordering Information Part No.

Package Packing TSM850N06CX RFG SOT-23 3kpcs / 7” Reel Note: “G” denotes for Halogen- and Antimony-free as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds Block Diagram Absolute Maximum

TSM850N06CX-TaiwanSemiconductor.pdf

Preview of TSM850N06CX PDF

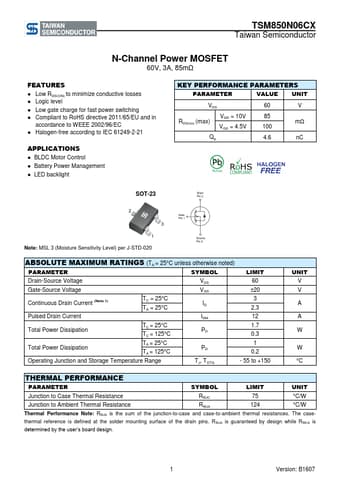

TSM850N06CX Datasheet Preview Page 2 TSM850N06CX Datasheet Preview Page 3

Datasheet Details

Part number:

TSM850N06CX

Manufacturer:

Taiwan Semiconductor

File Size:

330.46 KB

Description:

N-channel power mosfet.
