TSM85N10 Datasheet - Taiwan Semiconductor

N-Channel Power MOSFET

TSM85N10 Features

* Advanced Trench Technology

* Low RDS(ON) 10mΩ (Max.)

* Low gate charge typical @ 154nC (Typ.)

* Low Crss typical @ 170pF (Typ.) Ordering Information Part No. TSM85N10CZ C0 Package TO-220 Packing 50pcs / Tube Block Diagram N-Channel MOSFET Absolute Maximum Rating (Ta = 25oC

TSM85N10 General Description

only. No license, express or implied, to any intellectual property rights is granted by this document. Except as provided in TSC’s terms and conditions of sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty, relating to sale and/or use of TSC pr.

TSM85N10 Datasheet (277.85 KB)

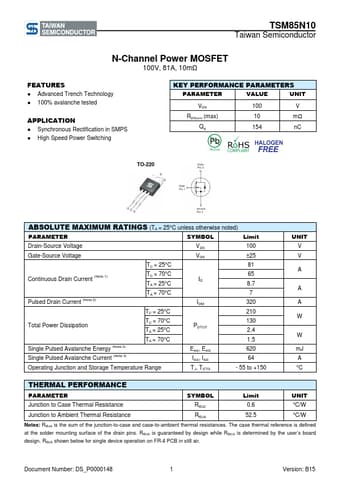

TSM85N10 Datasheet Preview — Preview of TSM85N10 PDF

Datasheet Details

Part number:

TSM85N10

Manufacturer:

Taiwan Semiconductor

File Size:

277.85 KB

Description:

N-channel power mosfet.
TO-220 Pin Definition: 1. Gate 2. Drain 3. Source TSM85N10 100V N-Channel Power MOSFET PRODUCT SUMMARY VDS (V) RDS(on)(mΩ) 100 10 @ VGS =10V ID.
