TSM802 Datasheet - Taiwan Semiconductor Company

20V N-Channel MOSFET w/ESD Protected

TSM802 Features

* Advance Trench Process Technology High Density Cell Design for Ultra Low On-resistance Low Profile 0.75mm (typ.) ESD Protect 2KV Block Diagram Application

* Specially Designed for Li-on Battery Packs Battery Switch Application Ordering Information Part No. Packag

TSM802 General Description

only. No license, express or implied, to any intellectual property rights is granted by this document. Except as provided in TSC’s terms and conditions of sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty, relating to sale and/or use of TSC pr.

TSM802 Datasheet (278.05 KB)

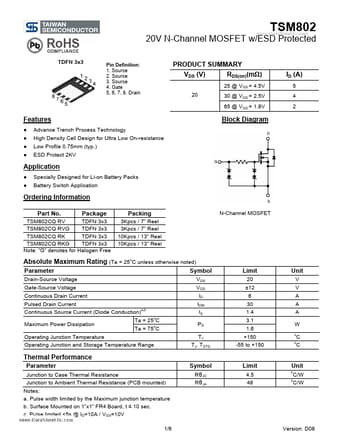

TSM802 Datasheet Preview — Preview of TSM802 PDF

Datasheet Details

Part number:

TSM802

Manufacturer:

Taiwan Semiconductor Company

File Size:

278.05 KB

Description:

20v n-channel mosfet w/esd protected.
20V N-Channel MOSFET w/ESD Protected TDFN 3x3 Pin Definition: 1. Source 2. Source 3. Source 4. Gate 5, 6, 7, 8. Drain www.DataSheet4U.com TSM802 PR.
