TSM8588CS, Complementary N & P-Channel Power MOSFET

TSM8588CS Taiwan Semiconductor Complementary N & P-Channel Power MOSFET .

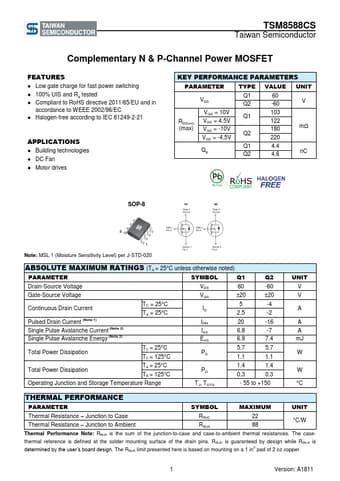

datasheet Preview Page 1 from Datasheet4u.com

TSM8588CS-TaiwanSemiconductor.pdf

TSM8588CS Datasheet Preview — Preview of TSM8588CS PDF

Datasheet Details

Part number:

TSM8588CS

Manufacturer:

Taiwan Semiconductor

File Size:

362.81 KB

Description:

Complementary N & P-Channel Power MOSFET

Features

* Low gate charge for fast power switching
* 100% UIS and Rg tested
* Compliant to RoHS directive 2011/65/EU and in accordance to WEEE 2002/96/EC

Applications

* Building technologies
* DC Fan
* Motor drives KEY PERFORMANCE PARAMETERS PARAMETER TYPE VALUE UNIT Q1 60 VDS Q2 -60 V VGS = 10V Q1 103 RDS(on) (max) VGS = 4.5V VGS = -10V Q2 122 180 mΩ VGS = -4.5V 220 Q1 4.4 Qg Q2 4.6 nC SOP-8 Note: MSL 1 (Moisture Sensitivity Level)
