TSM8568CS, N- and P-Channel Power MOSFET

TSM8568CS Taiwan Semiconductor N- and P-Channel 30V (D-S) Power MOSFET .

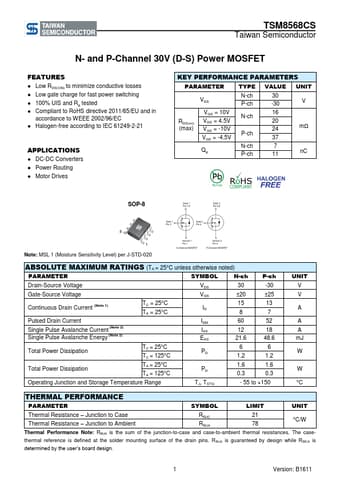

datasheet Preview Page 1 from Datasheet4u.com

TSM8568CS-TaiwanSemiconductor.pdf

TSM8568CS Datasheet Preview — Preview of TSM8568CS PDF

Datasheet Details

Part number:

TSM8568CS

Manufacturer:

Taiwan Semiconductor

File Size:

606.97 KB

Description:

N- and P-Channel Power MOSFET

Features

* Low RDS(ON) to minimize conductive losses
* Low gate charge for fast power switching
* 100% UIS and Rg tested
* Compliant to RoHS directive 2011/65/EU and in accordance to WEEE 2002/96/EC

Applications

* DC-DC Converters
* Power Routing
* Motor Drives KEY PERFORMANCE PARAMETERS PARAMETER TYPE VALUE UNIT N-ch 30 VDS P-ch -30 V VGS = 10V N-ch 16 RDS(on) VGS = 4.5V 20 (max) VGS = -10V P-ch 24 mΩ VGS = -4.5V 37 N-ch 7 Qg P-ch 11 nC SOP-8 Note: MSL 1 (Moisture Sens
