Part number:
2SD1163A
Manufacturer:
Thinki Semiconductor
File Size:
280.45 KB
Description:
Npn silicon epitaxial power transistor.
2SD1163A Datasheet (280.45 KB)

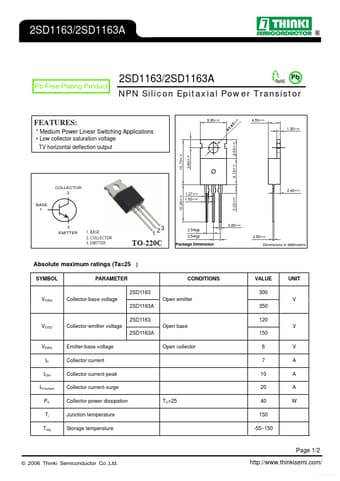

* Medium Power Linear Switching Applications
* Low collector saturation voltage TV horizontal deflection output 15.70±0.20 2.80±0.20 9.90±0.20 φ3 0± .6 0. 20 4.50±0.20 1.30±0.20 13.08±0.20 COLLECTOR 2 BASE 1 9.19±0.20 6.50±0.20 3 EMITTER 1. BASE 2. COLLECTOR 3. EMITTER 3 12 0.8
2SD1163A Datasheet (280.45 KB)
2SD1163A
Thinki Semiconductor
280.45 KB
Npn silicon epitaxial power transistor.
