2SC3225 - Silicon NPN TRANSISTOR

📥 Download Datasheet

Datasheet preview – 2SC3225

Datasheet Details

Part number 2SC3225
Manufacturer Toshiba Semiconductor
File Size 138.92 KB
Description Silicon NPN TRANSISTOR
Datasheet download datasheet 2SC3225 Datasheet
Additional preview pages of the 2SC3225 datasheet.

📁 Similar Datasheet

  • 2SC3220 - High Voltage Ultra High Speed Switching Transistors (Shindengen Electric Mfg.Co.Ltd)
  • 2SC3220 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3221 - High Voltage Ultra High Speed Switching Transistors (Shindengen Electric Mfg.Co.Ltd)
  • 2SC3222 - High Voltage Ultra High Speed Switching Transistors (Shindengen Electric Mfg.Co.Ltd)
  • 2SC3223 - NPN Transistor (INCHANGE)
  • 2SC3223 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3228 - TRANSISTOR (Korea Electronics)
  • 2SC3229 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3229 - NPN Transistor (INCHANGE)
  • 2SC3200 - SILICON NPN TRANSISTOR (Korea Electronics)
Other Datasheets by Toshiba Semiconductor

Full PDF Text Transcription

Click to expand full text

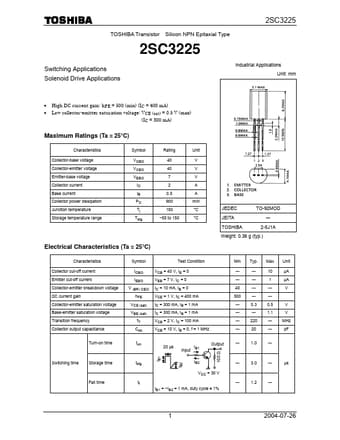

2SC3225 TOSHIBA Transistor Silicon NPN Epitaxial Type 2SC3225 Switching Applications Solenoid Drive Applications Industrial Applications Unit: mm • High DC current gain: hFE = 500 (min) (IC = 400 mA) • Low collector-emitter saturation voltage: VCE (sat) = 0.5 V (max) (IC = 300 mA) Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature range Symbol VCBO VCEO VEBO IC IB PC Tj Tstg Rating 40 40 7 2 0.5 900 150 −55 to 150 Unit V V V A A mW °C °C Electrical Characteristics (Ta = 25°C) JEDEC TO-92MOD JEITA ― TOSHIBA 2-5J1A Weight: 0.36 g (typ.
