2SC6000 Datasheet - Toshiba Semiconductor

2SC6000, Silicon NPN Transistor

2SC6000 TOSHIBA Transistor Silicon NPN Epitaxial Type 2SC6000 High Speed Switching Applications DC-DC Converter Applications * * .

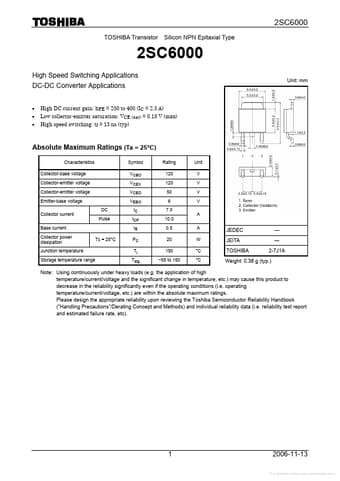

datasheet Preview Page 1 from Datasheet4u.com

2SC6000_ToshibaSemiconductor.pdf

2SC6000 Datasheet Preview — Preview of 2SC6000 PDF

Datasheet Details

Part number:

2SC6000

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

195.69 KB

Description:

Silicon NPN Transistor

Applications

* DC-DC Converter Applications
* High DC current gain: hFE = 250 to 400 (IC = 2.5 A) Low collector-emitter saturation: VCE (sat) = 0.18 V (max) High speed switching: tf = 13 ns (typ) Unit: mm Absolute Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Colle
