2SC6041 Datasheet - Toshiba Semiconductor

2SC6041 Silicon NPN Transistor

2SC6041 TOSHIBA Transistor Silicon NPN Triple-Diffused Mesa Type 2SC6041 Horizontal Deflection Output for HDTV, Digital TV, Projection TV. z High voltage z Low saturation voltage z High speed : VCBO = 1700 V : VCE (sat) = 1.5 V (max) : tf = 0.15 µs (typ.) Unit: mm z Collector metal (fin) is fully covered with mold resin. Maximum Ratings (TC = 25°C) Characteristic Collector base voltage Collector emitter voltage Emitter base voltage Collector current Base current Collec.

2SC6041_ToshibaSemiconductor.pdf

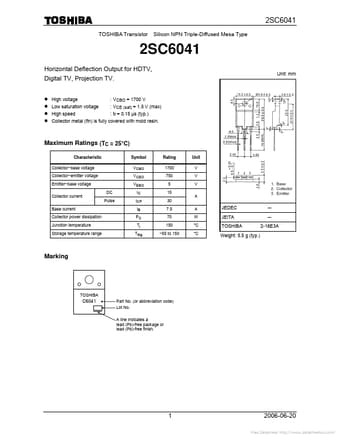

Preview of 2SC6041 PDF
2SC6041 Datasheet Preview Page 2 2SC6041 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC6041

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

219.77 KB

Description:

Silicon npn transistor.
