2SC6026MFV Datasheet - Toshiba Semiconductor

2SC6026MFV Silicon NPN Transistor

2SC6026MFV TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process) 2SC6026MFV General-Purpose Amplifier Applications High voltage and high current : VCEO = 50 V, IC = 150 mA (max) Excellent hFE linearity : hFE (IC = 0.1 mA)/hFE (IC = 2 mA) = 0.95 (typ.) High hFE : hFE = 120 to 400 Complementary to 2SA2154MFV Absolute Maximum Ratings (Ta = 25°C) 1.2 ± 0.05 0.8 ± 0.05 0.4 0.4 0.22 ± 0.05 1.2 ± 0.05 0.80 ± 0.05 Unit: mm 0.32 ± 0.05 1 1 3 2 .

2SC6026MFV Datasheet (162.43 KB)

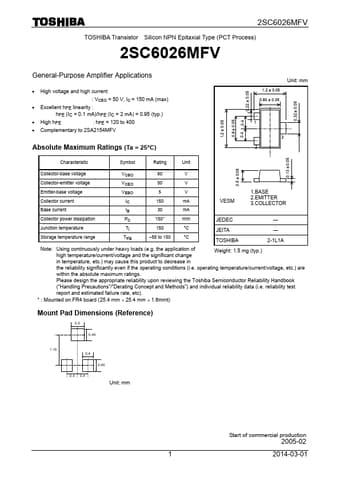

Preview of 2SC6026MFV PDF

Datasheet Details

Part number:

2SC6026MFV

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

162.43 KB

Description:

Silicon npn transistor.
