2SC6021 - NPN Epitaxial Planar Silicon Transistor

Product Overview

Sanyo Semicon Device

📥 Download Datasheet

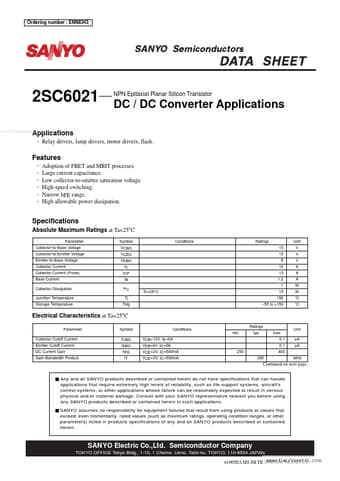

2SC6021 NPN Epitaxial Planar Silicon Transistor by Sanyo Semicon Device - Datasheet Preview — Datasheet preview – 2SC6021

Datasheet Details

Part number	2SC6021
Manufacturer	Sanyo Semicon Device
File Size	73.55 KB
Description	NPN Epitaxial Planar Silicon Transistor
Datasheet	2SC6021 Datasheet
Additional preview pages of the 2SC6021 datasheet.

Product details

Features

Adoption of FBET and MBIT processes. Large current capacitance. Low collector-to-emitter saturation voltage. High-speed switching. Narrow hFE range. High allowable power dissipation. Specifications Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Base Current Collector Dissipation Junction Temperature Storage Tempera.
