2SC6042 - Silicon NPN Transistor

2SC6042 Description

2SC6042 TOSHIBA Transistor Silicon NPN Triple Diffused Type 2SC6042 High-Speed, High-Voltage Switching Applications Switching Regulator Applications .

2SC6042 Applications

* Switching Regulator Applications DC-DC Converter Applications
* High-speed switching: tf = 0.2 μs (max) (IC = 0.3A) High breakdown voltage: VCES = 800 V, VCEO = 375 V Unit: mm Absolute Maximum Ratings (Ta = 25°C) Characteristic Collector-base voltage Collector-emitter voltage Emit

📥 Download Datasheet

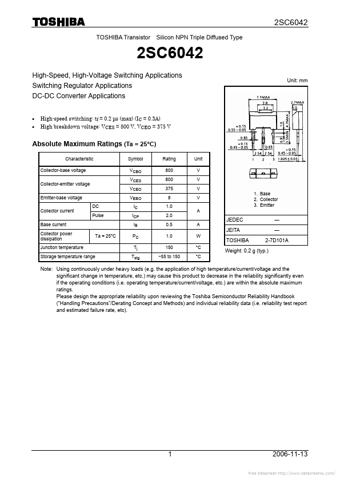

Preview of 2SC6042 PDF
datasheet Preview Page 2 datasheet Preview Page 3
