2SK2382 Datasheet - Toshiba Semiconductor

2SK2382 N-Channel MOSFET

www.DataSheet.co.kr 2SK2382 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π MOSV) 2SK2382 Switching Regulator, DC DC Converter and Motor Drive Applications z Low drain source ON resistance z High forward transfer admittance z Low leakage current z Enhancement mode : RDS (ON) = 0.13 Ω (typ.) : |Yfs| = 17 S (typ.) Unit: mm : IDSS = 100 μA (max) (VDS = 200 V) : Vth = 1.5~3.5 V (VDS = 10 V, ID = 1 mA) Absolute Maximum Ratings (Ta = 25°C) Characteristics Drai.

2SK2382_ToshibaSemiconductor.pdf

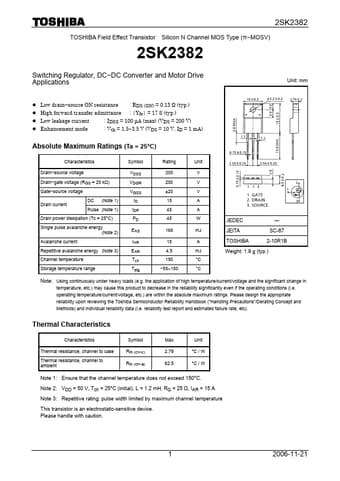

Preview of 2SK2382 PDF
2SK2382 Datasheet Preview Page 2 2SK2382 Datasheet Preview Page 3

Datasheet Details

Part number:

2SK2382

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

767.92 KB

Description:

N-channel mosfet.
