2SK2381 Silicon N-Channel MOSFET

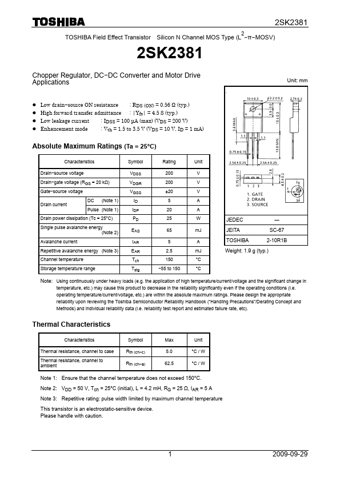

2SK2381 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (L2 π MOSV) 2SK2381 Chopper Regulator, DC DC Converter and Motor Drive Applications Unit: mm z Low drain source ON resistance : RDS (ON) = 0.56 Ω (typ.) z High forward transfer admittance : |Yfs| = 4.5 S (typ.) z Low leakage current : IDSS = 100 μA (max) (VDS = 200 V) z Enhancement mode : Vth = 1.5 to 3.5 V (VDS = 10 V, ID = 1 mA) Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbo.
