2SK2399 Datasheet - Toshiba Semiconductor

2SK2399 N-Channel MOSFET

2SK2399 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (L2 π MOSV) 2SK2399 Chopper Regulator, DC DC Converter and Motor Drive Applications Unit: mm l 4 V gate drive l Low drain source ON resistance : RDS (ON) = 0.17 Ω (typ.) l High forward transfer admittance : |Yfs| = 4.5 S (typ.) l Low leakage current : IDSS = 100 µA (max) (VDS = 100 V) l Enhancement mode : Vth = 0.8~2.0 V (VDS = 10 V, ID = 1 mA) Maximum Ratings (Ta = 25°C) Characte.

2SK2399_ToshibaSemiconductor.pdf

Preview of 2SK2399 PDF

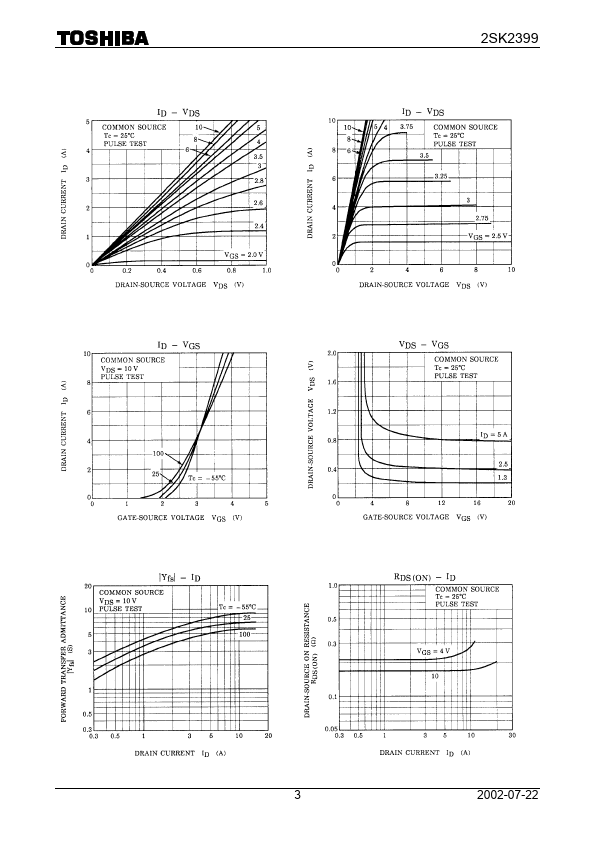

2SK2399 Datasheet Preview Page 2 2SK2399 Datasheet Preview Page 3

Datasheet Details

Part number:

2SK2399

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

266.80 KB

Description:

N-channel mosfet.
