2SK3843 Datasheet - Toshiba Semiconductor

2SK3843 N-Channel MOSFET

2SK3843 TOSHIBA Field Effect Transistor Silicon N-Channel MOS Type (U MOSIII) 2SK3843 Switching Regulator, DC/DC Converter and Motor Drive Applications z Low drain source ON resistance z High forward transfer admittance : RDS (ON) = 2.7 mΩ (typ.) : |Yfs| = 120 S (typ.) Unit: mm z Low leakage current : IDSS = 10 μA (max) (VDS = 40 V) z Enhancement mode : Vth = 1.5~3.0 V (VDS = 10 V, ID = 1 mA) www.DataSheet4U.com Maximum Ratings (Ta = 25°C) Characteristic Drain source v.

2SK3843_ToshibaSemiconductor.pdf

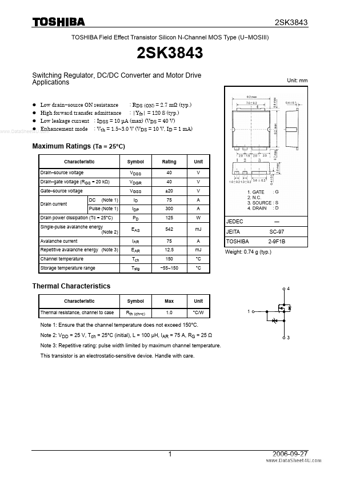

Preview of 2SK3843 PDF
2SK3843 Datasheet Preview Page 2 2SK3843 Datasheet Preview Page 3

Datasheet Details

Part number:

2SK3843

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

213.13 KB

Description:

N-channel mosfet.
