2SK3844 N-Channel MOSFET

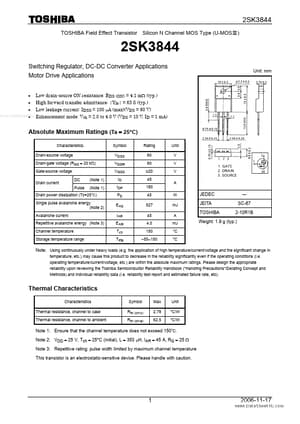

2SK3844 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (U-MOSⅢ) 2SK3844 Switching Regulator, DC-DC Converter Applications Motor Drive Applications Low drain-source ON resistance: RDS (ON) = 4.1 mΩ (typ.) High forward transfer admittance: |Yfs| = 63 S (typ.) Unit: mm Low leakage current: IDSS = 100 μA (max)(VDS = 60 V) www.DataSheet4U.com Enhancement mode: Vth = 2.0 to 4.0 V (VDS = 10 V, ID = 1 mA) Absolute Maximum Ratings (Ta = 25°C) Charact.
