TK100A08N1 - MOSFETs

Datasheet Summary

Features

  • (1) (2) (3) Low drain-source on-resistance: RDS(ON) = 2.6 mΩ (typ. ) (VGS = 10 V) Low leakage current: IDSS = 10 µA (max) (VDS = 80 V) Enhancement mode: Vth = 2.0 to 4.0 V (VDS = 10 V, ID = 1.0 mA) 3. Packaging and Internal Circuit 1: Gate 2: Drain 3: Source TO-220SIS 4. Absolute Maximum Ratings (Note) (Ta = 25 unless otherwise specified) Characteristics Drain-source voltage Gate-source voltage Drain current (DC) Drain current (DC) Drain current (pulsed) Power dissipation Single-pulse avalan.

📥 Download Datasheet

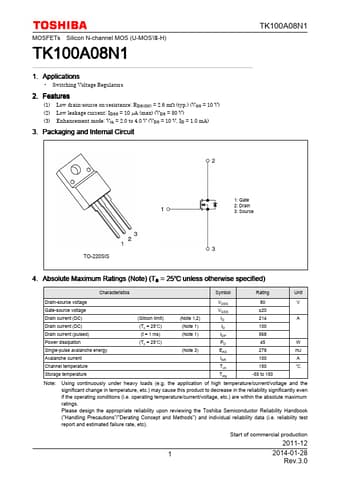

Datasheet preview – TK100A08N1

Datasheet Details

Part number TK100A08N1
Manufacturer Toshiba Semiconductor
File Size 232.77 KB
Description MOSFETs
Datasheet download datasheet TK100A08N1 Datasheet
Additional preview pages of the TK100A08N1 datasheet.

📁 Similar Datasheet

Other Datasheets by Toshiba Semiconductor

Full PDF Text Transcription

Click to expand full text
TK100A08N1 MOSFETs Silicon N-channel MOS (U-MOS-H) TK100A08N1 1. Applications • Switching Voltage Regulators 2. Features (1) (2) (3) Low drain-source on-resistance: RDS(ON) = 2.6 mΩ (typ.) (VGS = 10 V) Low leakage current: IDSS = 10 µA (max) (VDS = 80 V) Enhancement mode: Vth = 2.0 to 4.0 V (VDS = 10 V, ID = 1.0 mA) 3. Packaging and Internal Circuit 1: Gate 2: Drain 3: Source TO-220SIS 4.
