TLP781F, TLP781 Datasheet - Toshiba Semiconductor

TLP781F Photocoupler

TOSHIBA Photocoupler IRED & Photo Transistor TLP781, TLP781F TLP781/TLP781F Office Equipment Home Electric Appliances Solid-State Relays Switching Power Supplies Contactless Controller Outputs Simplex/Multiplex Data Transmission TLP781 Unit: mm The TOSHIBA TLP781 consists of a silicone photo transistor optically coupled to an infrared emitting diode in a four lead plastic DIP (DIP4) with having high isolation voltage (AC: 5000 Vrms (min)). TLP781 : 7.62mm pitch type DI.

TLP781_ToshibaSemiconductor.pdf

This datasheet PDF includes multiple part numbers: TLP781F, TLP781. Please refer to the document for exact specifications by model.

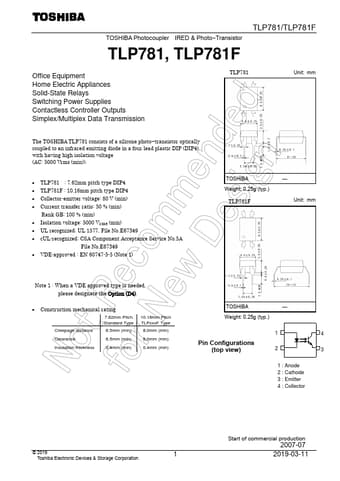

TLP781F Datasheet Preview Page 2 TLP781F Datasheet Preview Page 3

Datasheet Details

Part number:

TLP781F, TLP781

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

0.96 MB

Description:

Photocoupler.

Note:

This datasheet PDF includes multiple part numbers: TLP781F, TLP781.
Please refer to the document for exact specifications by model.
