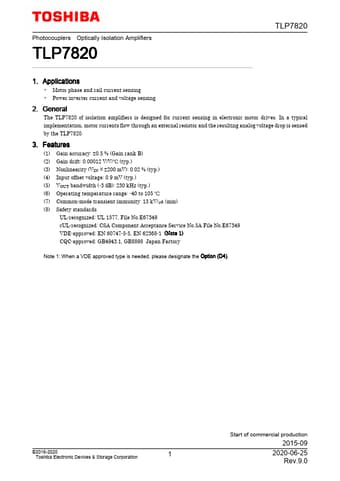

TLP7820 Datasheet - Toshiba Semiconductor

TLP7820 Photocouplers

VDD1 VIN+ VINGND1 GND2 VOUTVOUT+ VDD2 Input side supply voltage Positive input Negative input Input side ground Output side ground Negative output Positive output Output side supply voltage 5. Internal Circuit (Note) Note: A 0.1-µF bypass capacitor must be connected between 1 and 4 pins and betw.

TLP7820 Features

* (1) Gain accuracy: ±0.5 % (Gain rank B) (2) Gain drift: 0.00012 V/V/ (typ.) (3) Nonlinearity (VIN = ±200 mV): 0.02 % (typ.) (4) Input offset voltage: 0.9 mV (typ.) (5) VOUT bandwidth (-3 dB): 230 kHz (typ.) (6) Operating temperature range: -40 to 105  (7) Common-mode transient immunity: 15 kV/µs (
