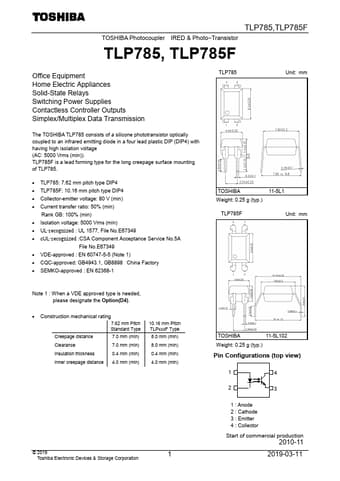

TLP785,TLP785F
TOSHIBA Photocoupler IRED & Photo−Transistor
TLP785, TLP785F
Office Equipment Home Electric Appliances Solid-State Relays Switching Power Supplies Contactless Controller Outputs Simplex/Multiplex Data Transmission
TLP785
Unit: mm
The TOSHIBA TLP785 consists of a silicone phototransistor optically coupled to an infrared emitting diode in a four lead plastic DIP (DIP4) with having high isolation voltage (AC: 5000 Vrms (min)). TLP785F is a lead forming type for the long creepage surface mounting of TLP785.
• TLP785: 7.62 mm pitch type DIP4 • TLP785F: 10.16 mm pitch type DIP4 • Collector-emitter voltage: 80 V (min) • Current transfer ratio: 50% (min)
Rank GB: 100% (min) • Isolation voltage: 5000 Vrms (min) • UL-recognized : UL 1577, File No.
