1S1830 - Silicon Diffused Type Rectifier

1S1830 Description

1S1830,1S1885,1S1887,1S1888 TOSHIBA Rectifier Silicon Diffused Type 1S1830,1S1885,1S1887,1S1888 General Purpose Rectifier Applications Unit: mm

1S1830 Applications

* Unit: mm
* Average Forward Current: IF (AV) = 1.0 A (Ta = 65°C)
* Repetitive Peak Reverse Voltage: VRRM = 100 V, 400 V, 600 V, 1000 V Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit 1S1885 100 Repetitive peak reverse voltage 1S1887 1S1888 VRRM 400

📥 Download Datasheet

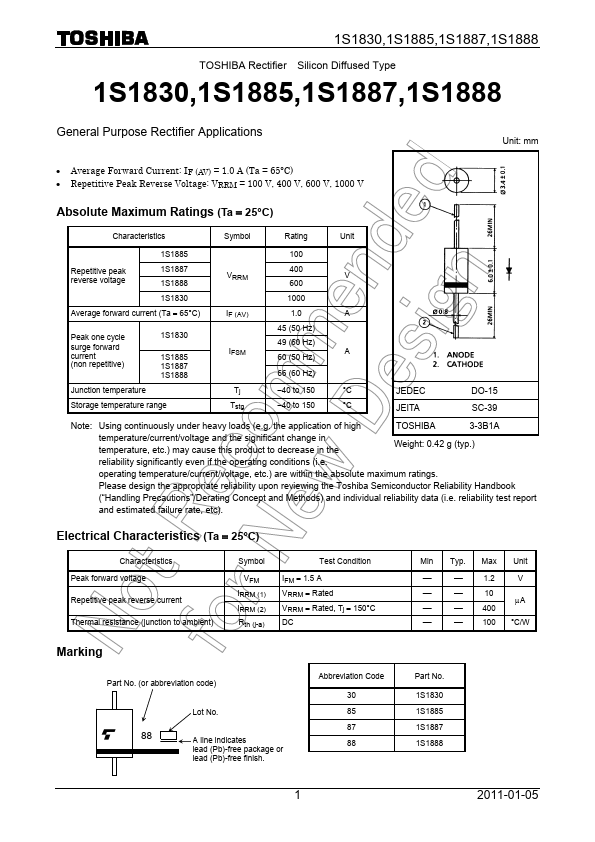

Preview of 1S1830 PDF

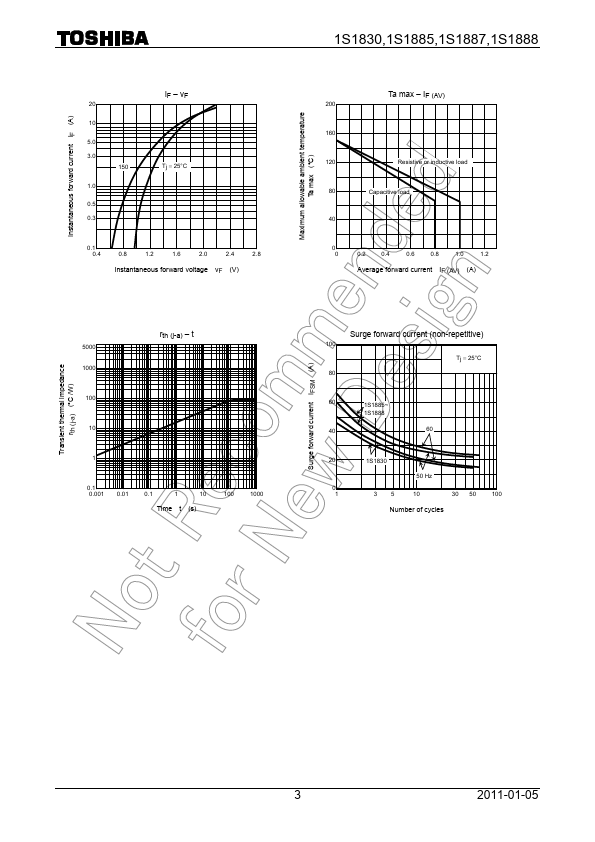

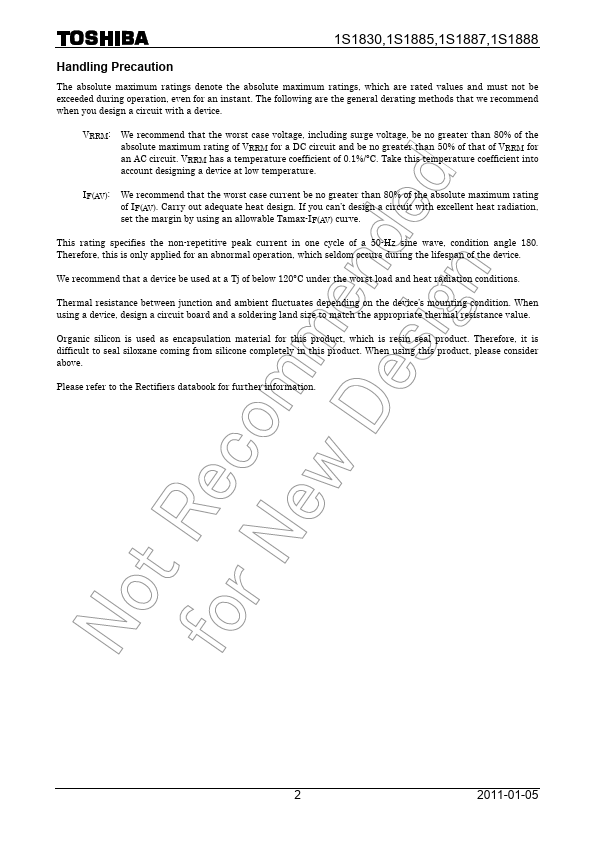

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1S1830
Manufacturer
Toshiba ↗
File Size
112.99 KB
Datasheet
1S1830-Toshiba.pdf
Description
Silicon Diffused Type Rectifier
