SSM6K513NU Silicon N-Channel MOSFET

SSM6K513NU Description

MOSFETs Silicon N-channel MOS (U-MOS *-H) SSM6K513NU 1.Applications * Power Management Switches 2..

SSM6K513NU Features

* (1) 4.5 V drive (2) Low drain-source on-resistance : RDS(ON) = 8.0 mΩ (typ. ) (@VGS = 4.5 V) RDS(ON) = 6.5 mΩ (typ. ) (@VGS = 10 V) 3. Packaging and Pin Assignment UDFN6B SSM6K513NU 1, 2, 5, 6: Drain 3: Gate 4: Source ©2016-2024 1 Toshiba Electronic Devices & Storage Corporation Start of commerci

📥 Download Datasheet

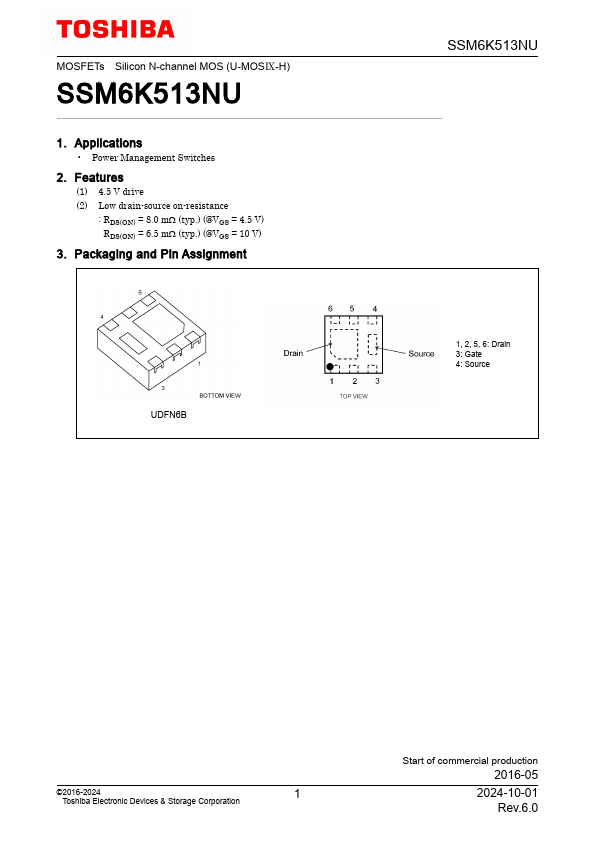

Preview of SSM6K513NU PDF

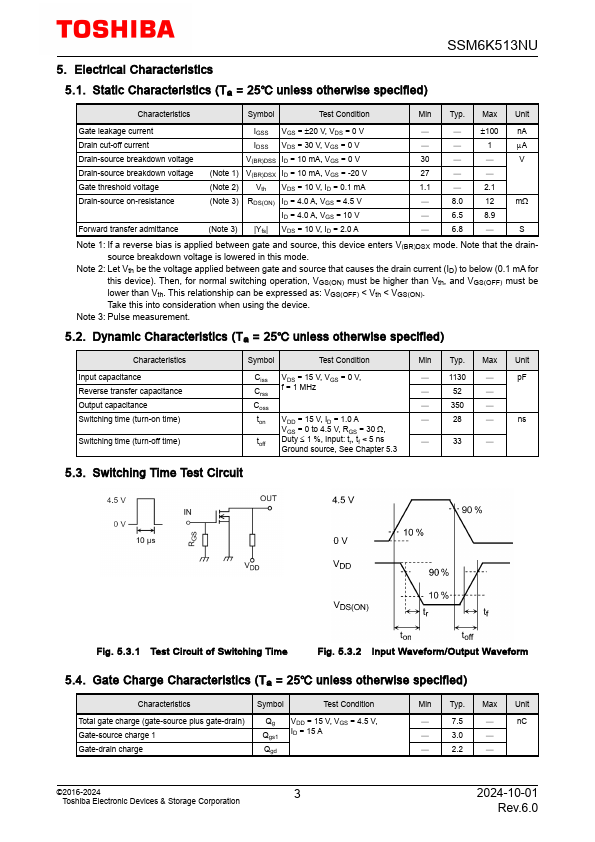

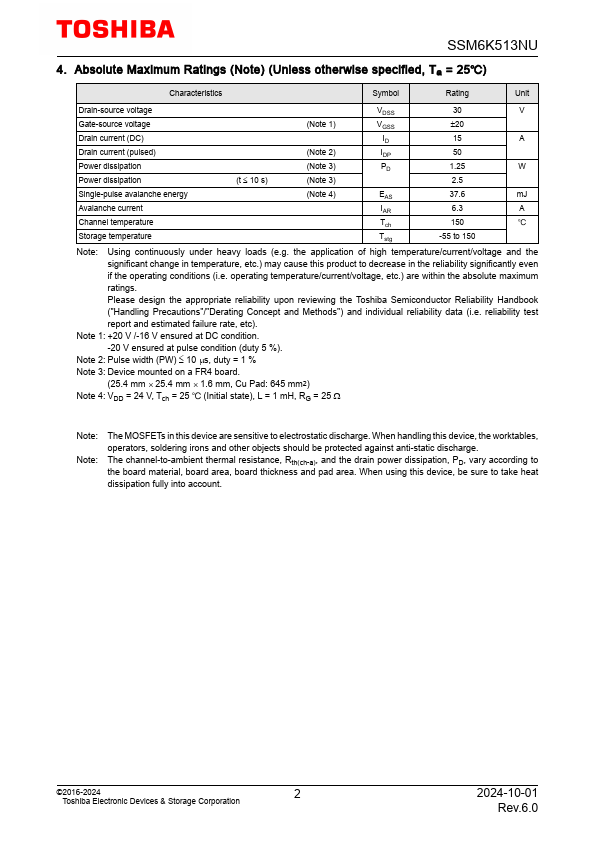

datasheet Preview Page 2 datasheet Preview Page 3
