TBD62083AFNG, TBD62083APG 8channel sink type DMOS transistor array

Toshiba

Description

TBD62083A series, TBD62084A series TOSHIBA BiCD Integrated Circuit Silicon Monolithic TBD62083APG, TBD62083AFG, TBD62083AFNG, TBD62083AFWG TBD62084APG.

📥 Download Datasheet

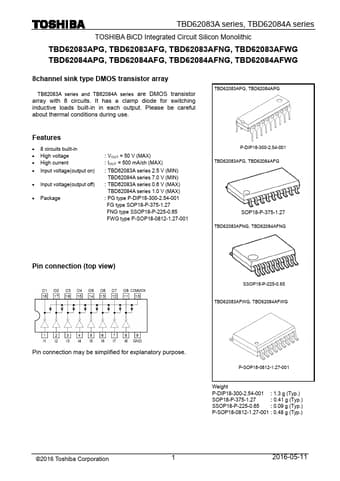

TBD62083AFNG Datasheet Preview — This datasheet PDF includes multiple part numbers: TBD62083AFNG, TBD62083APG. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: TBD62083AFNG, TBD62083APG
Manufacturer: Toshiba ↗
File Size: 454.70 KB
Datasheet: TBD62083APG-Toshiba.pdf
Description: 8channel sink type DMOS transistor array
Note: This datasheet PDF includes multiple part numbers: TBD62083AFNG, TBD62083APG.
Please refer to the document for exact specifications by model.

Features

* 8 circuits built-in
* High voltage
* High current
* Input voltage(output on)
* Input voltage(output off)
* Package : VOUT = 50 V (MAX) : IOUT = 500 mA/ch (MAX) : TBD62083A series 2.5 V (MIN) TBD62084A series 7.0 V (MIN) : TBD62083A series 0.6 V (MAX
