TBD62084AFNG, TBD62083APG - 8channel sink type DMOS transistor array

Toshiba

📥 Download Datasheet

TBD62084AFNG Datasheet Preview — This datasheet PDF includes multiple part numbers: TBD62084AFNG, TBD62083APG. Please refer to the document for exact specifications by model.

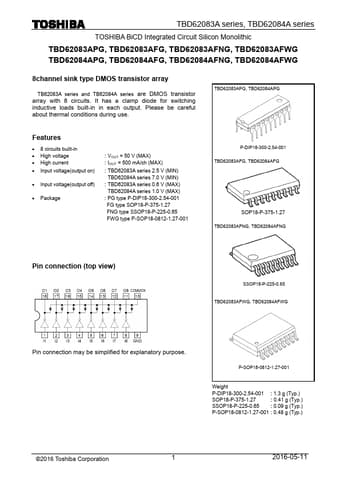

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: TBD62084AFNG, TBD62083APG
Manufacturer: Toshiba ↗
File Size: 454.70 KB
Datasheet: TBD62083APG-Toshiba.pdf
Description: 8channel sink type DMOS transistor array
Note: This datasheet PDF includes multiple part numbers: TBD62084AFNG, TBD62083APG.
Please refer to the document for exact specifications by model.

TBD62084AFNG Product details

Features

8 circuits built-in.
High voltage.
High current.
Input voltage(output on).
Input voltage(output off).
Package : VOUT = 50 V (MAX) : IOUT = 500 mA/ch (MAX) : TBD62083A series 2.5 V (MIN) TBD62084A series 7.0 V (MIN) : TBD62083A series 0.6 V (MAX) TBD62084A series 1.0 V (MAX) : PG type P-DIP18-300-2.54-001 FG type SOP18-P-375-1.27 FNG type SSOP18-P-225-0.65 FWG type P-SOP18-0812-1.27-001 P-DIP18-300-2.54-001 TBD62083AFG, TBD62084AFG SOP18-P-.
