TC74VHC373F Octal D-Type Latch

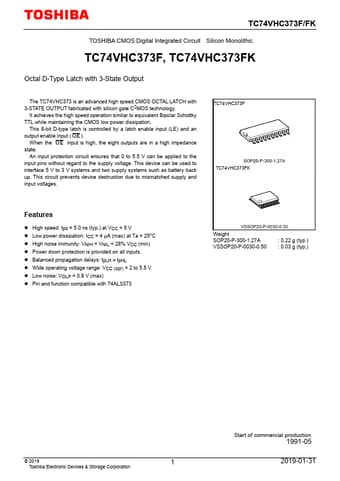

TC74VHC373F/FK TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC74VHC373F, TC74VHC373FK Octal D-Type Latch with 3-State Output The TC74VHC373 is an advanced high speed CMOS OCTAL LATCH with 3-STATE OUTPUT fabricated with silicon gate C2MOS technology. It achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. This 8-bit D-type latch is controlled by a latch enable input (LE) and an output enable input ( OE ). Whe.

TC74VHC373F Features

* High speed: tpd = 5.0 ns (typ.) at VCC = 5 V

* Low power dissipation: ICC = 4 μA (max) at Ta = 25°C

* High noise immunity: VNIH = VNIL = 28% VCC (min)

* Power down protection is provided on all inputs.

* Balanced propagation delays: tpLH ∼

* tpHL

* Wide operating vol
