TC74VHC374FK Datasheet - Toshiba

TC74VHC374FK - Octal D-Type Flip-Flop

TC74VHC374F/FK TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC74VHC374F, TC74VHC374FK Octal D-Type Flip Flop with 3-State Output The TC74VHC374 is an advanced high speed CMOS OCTAL FLIP-FLOP with 3-STATE OUTPUT fabricated with silicon gate C2MOS technology.

It achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation.

This 8-bit D-type flip-flop is controlled by a clock input (CK) and an output enable input ( OE )

TC74VHC374FK Features

* High speed: fmax = 185 MHz (typ.) at VCC = 5 V

* Low power dissipation: ICC = 4 µA (max) at Ta = 25°C

* High noise immunity: VNIH = VNIL = 28% VCC (min)

* Power down protection is provided on all inputs.

* Balanced propagation delays: tpLH ∼

* tpHL

* Wide operating v

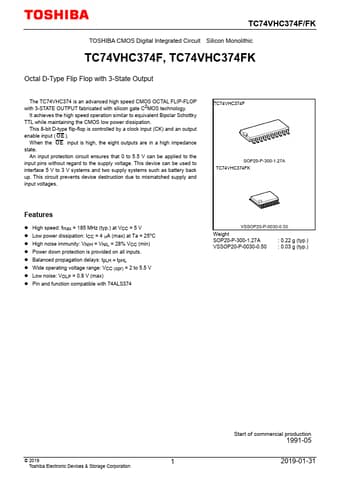

TC74VHC374FK-Toshiba.pdf
