TC74VHC374FW, OCTAL D-TYPE FLIP-FLOP WITH 3-STATE OUTPUT

TC74VHC374F/FW/FT TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC74VHC374F,TC74VHC374FW,TC74VHC374FT Octal D-Type Flip Flop with 3-Stat.

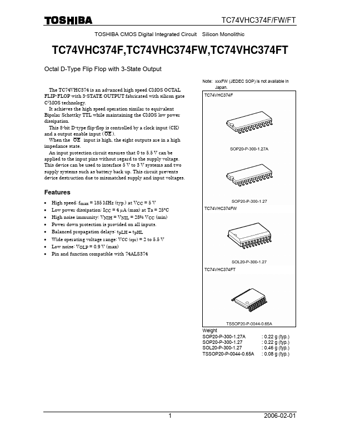

datasheet Preview Page 1 from Datasheet4u.com

TC74VHC374FW_ToshibaSemiconductor.pdf

TC74VHC374FW Datasheet Preview — Preview of TC74VHC374FW PDF

Datasheet Details

Part number:

TC74VHC374FW

Manufacturer:

Toshiba ↗

File Size:

365.61 KB

Description:

OCTAL D-TYPE FLIP-FLOP WITH 3-STATE OUTPUT

Features

* High speed: fmax = 185 MHz (typ. ) at VCC = 5 V
* Low power dissipation: ICC = 4 µA (max) at Ta = 25°C
* High noise immunity: VNIH = VNIL = 28% VCC (min)
* Power down protection is provided on all inputs.
* Balanced propagation delays: tpLH ∼
* tpHL

Applications

* (computer, personal equipment, office equipment, measuring equipment, industrial robotics, domestic appliances, etc. ). These TOSHIBA products are neither intended nor warranted for usage in equipment that requires extraordinarily high quality and/or reliability or a malfunction or failure of which m
